810481

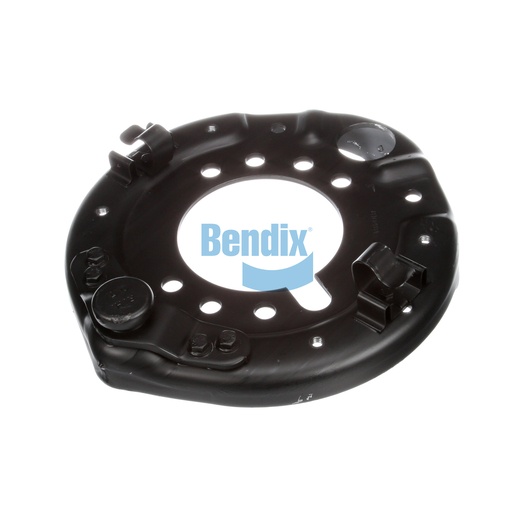

Spider / Pin Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spider / Pin Assembly from Bendix is an essential component in the foundation drum brake system, designed to provide the necessary support and alignment for brake components. Weighing 6.6 kg, this assembly is built to endure the demands of heavy-duty applications, ensuring durability and reliability. Its robust design facilitates effective braking performance, making it a critical part of the braking system. Whether you are replacing worn-out parts or upgrading your vehicle's braking system, this assembly is a reliable choice. Source One Parts Center is your go-to source for genuine Bendix OEM parts, offering exceptional service and quality.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
14.48 lb
