810798N

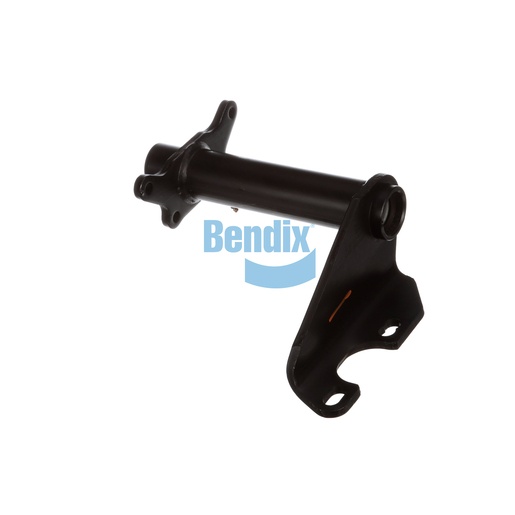

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential component designed to enhance the performance and durability of your commercial truck's braking system. Crafted with high-quality materials, this bracket assembly provides robust support for drum brakes, ensuring that your vehicle’s braking system operates efficiently under varying loads and conditions. With a full arm style and nylon bushings, it guarantees optimal alignment and reduces wear over time. Its thoughtful design minimizes the risk of failure, promoting safety and reliability on the road. This bracket offers a slack length range of 5.50 to 6.00 inches, making it adaptable to a variety of applications. Installing a genuine Bendix Bracket Assembly from Source One Parts Center ensures you receive a product that meets OEM specifications, providing peace of mind with every mile driven. Source One Parts Center is your go-to source for authentic Bendix OEM parts, ensuring your truck operates at its best.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.81
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
376.0 mm (14.8 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.1 lb
