811582N

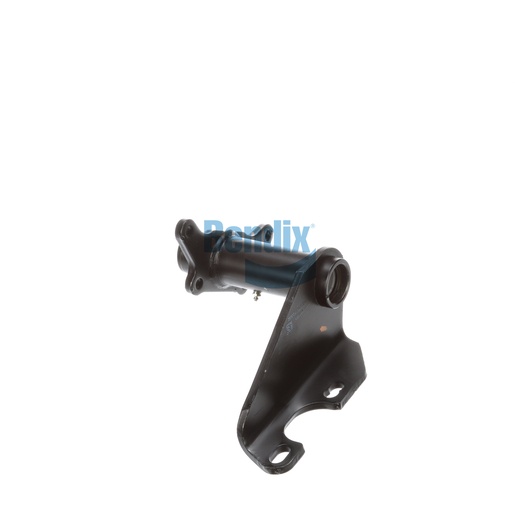

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a key component that supports the functionality of your commercial vehicle's braking system. Constructed with durable materials, this assembly is designed to withstand the stresses of heavy-duty use, ensuring long-lasting performance. Featuring a single gusset and full arm style, it provides the necessary strength and stability to keep brake components aligned and functioning efficiently. With precise dimensions, including a length of 10.83 inches, this bracket is engineered for optimal fitment and ease of installation. By incorporating this assembly into your braking system, you can enhance the reliability and safety of your vehicle. For the best selection of genuine Bendix OEM parts, Source One Parts Center is the leading choice, providing quality products tailored for commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.81
Length
275.0 mm (10.83 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.5 lb
