811843
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

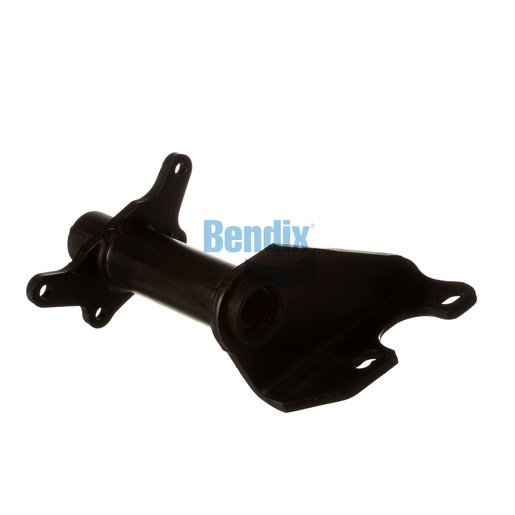

The Bracket Assembly from Bendix is an essential component designed to provide robust support for your commercial vehicle's foundation drum brakes. This assembly features a single gusset and full arm style, engineered to withstand the demanding conditions of heavy-duty applications. Constructed with high-quality materials, it offers a length adjustment range of 5.50 to 6.00 inches, ensuring an optimal fit for various setups. The nylon bushings enhance durability and performance, reducing wear over time. With a camshaft bracket angle of 77° and a dimension of 11.56 inches from centerline to centerline, this bracket guarantees precise alignment and stability during operation. The bracket's design ensures easy installation, making it a practical choice for mechanics and fleet operators alike. Trust Source One Parts Center for all your genuine Bendix OEM parts needs, ensuring that your commercial vehicles operate efficiently and safely.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Height
292.0 mm (11.5 in)
Length
294.0 mm (11.57 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
77° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
11.95 lb
