812457

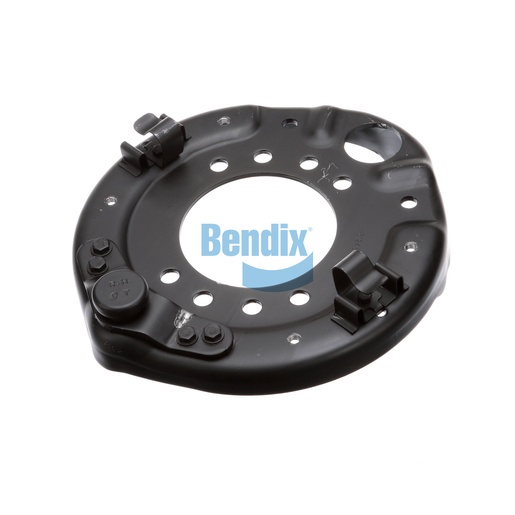

Spider / Pin Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spider / Pin Assembly from Bendix is a critical component of the foundation drum brake system, designed to provide robust support and stability for brake operation. This assembly ensures the proper alignment of brake components, facilitating smooth and efficient braking performance in commercial vehicles. Built with high-quality materials, the Spider / Pin Assembly is engineered for durability, capable of withstanding the demands of heavy-duty applications. Its design allows for easy installation and maintenance, making it a convenient choice for fleet operators. By ensuring that the brake system functions optimally, this assembly contributes to the overall safety and reliability of your vehicle. Source One Parts Center is the trusted source for genuine Bendix OEM parts, ensuring you have the right components to keep your commercial vehicles performing at their best.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
14.95 lb
