812850N

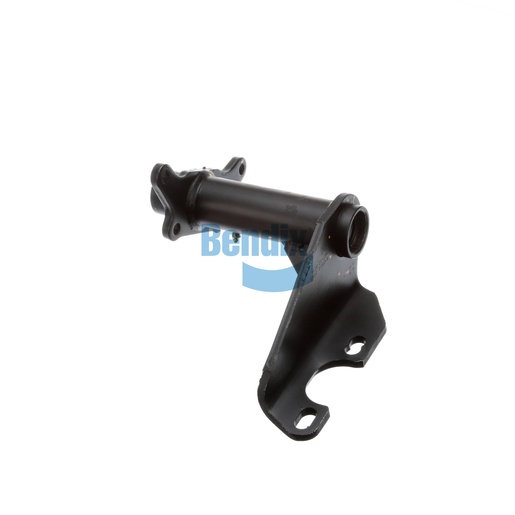

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is designed to maintain the structural integrity of the braking system, providing essential support for various components, including the air chamber and camshaft. This assembly is crafted from high-quality materials to ensure durability and withstand the stresses of heavy-duty applications. Its precise design allows for easy installation and compatibility with a range of Bendix systems, making it a practical choice for fleet maintenance. The robust nature of this bracket assembly ensures that all brake components function correctly, enhancing overall vehicle safety and performance. For those in search of genuine Bendix OEM parts, Source One Parts Center is the leading provider, ensuring you receive quality components that meet rigorous industry standards.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.50
Height
292.0 mm (11.5 in)
Length
318.0 mm (12.52 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.99 lb
