$439.95
$527.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

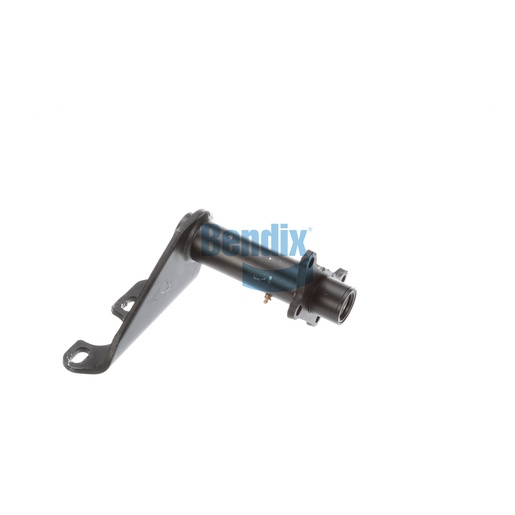

The Bracket Assembly from Bendix is crucial for supporting the structural integrity of your truck's braking system. Weighing 5.9 kg (13.0 lb), this assembly is engineered for durability and reliability, ensuring long-lasting performance under heavy loads. Its nylon bushings and robust construction help maintain optimal alignment, which is essential for effective braking. This assembly plays a vital role in reducing wear and tear on other brake components, ultimately improving the overall safety of your vehicle. For purchasing genuine Bendix OEM parts, Source One Parts Center stands out as your best option, delivering quality and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.50
Height
292.0 mm (11.5 in)
Length
318.0 mm (12.52 in)
Width
365.0 mm (14.37 in)
Camshaft Bracket Angle
45° CW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13 lb
