812855N

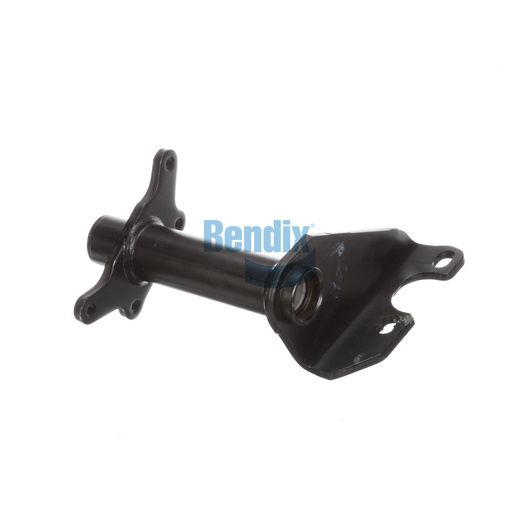

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is a critical component designed to enhance the performance and reliability of your commercial vehicle's foundation drum brakes. Built with high-quality materials, this bracket assembly ensures optimal support and positioning of the brake chambers and camshafts, contributing to improved braking efficiency. Its robust design features nylon bushings for added durability and resistance against wear, making it a perfect choice for heavy-duty applications. With a length range of 5.50 to 6.00 inches, it provides the necessary slack length for effective operation. The camshaft bracket angle is set at 65° CW, ensuring proper alignment for smooth brake performance. Weighing in at 5.8 kg, this assembly is engineered to withstand the rigors of the road while maintaining the integrity of your braking system. Choosing genuine Bendix OEM parts from Source One Parts Center guarantees you receive top-tier quality and reliability, ensuring that your commercial vehicle operates at its best.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.50
Length
243.0 mm (9.57 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.79 lb
