814109N

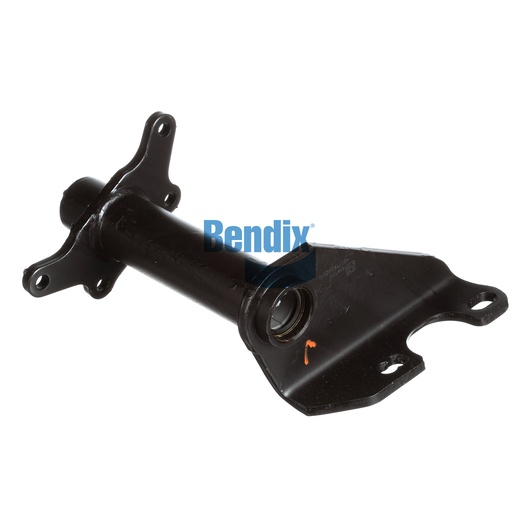

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a critical component in your commercial vehicle's foundation drum brake system, providing necessary support and alignment for various brake parts. Engineered for durability, this assembly ensures that the camshaft operates smoothly and effectively, contributing to the overall safety and performance of your truck’s braking system. By investing in this high-quality Bracket Assembly, you can enhance the reliability of your brakes and prevent premature wear of other components. Regular maintenance and timely replacement of this assembly are essential to maintaining optimal braking performance. For the best selection of genuine Bendix OEM parts, Source One Parts Center is your trusted partner, offering components designed specifically for your vehicle's needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.25
Height
292.0 mm (11.5 in)
Length
337.0 mm (13.27 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
63° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.2 lb
