814110N

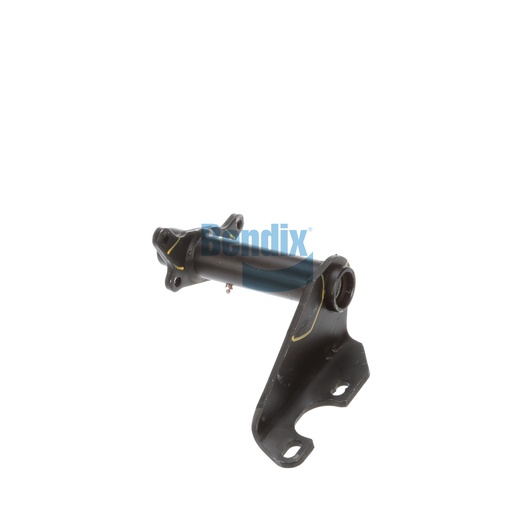

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is an essential component for foundation drum brakes, providing robust support and stability to the braking system. This meticulously engineered bracket is designed to securely hold various brake components in place, ensuring that they function optimally under heavy loads and harsh conditions. Its durable construction guarantees longevity, making it a reliable choice for fleet operators who demand performance and durability from their commercial truck parts. The precise fit and design of this bracket assembly facilitate easy installation, reducing downtime during repairs and maintenance. For fleet managers and truck owners seeking dependable Bendix OEM parts, Source One Parts Center is the ideal destination, committed to providing genuine parts that ensure your vehicle operates at its best.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.25
Height
292.0 mm (11.5 in)
Length
337.0 mm (13.27 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.55 lb
