814111N

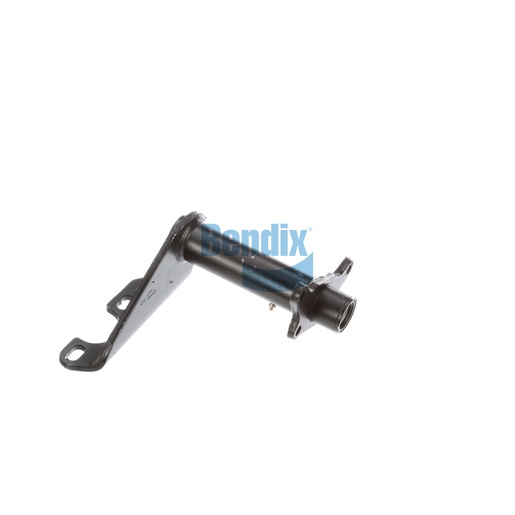

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix bracket assembly is a crucial element in foundation drum brakes, engineered for high performance and reliability. With a full arm style and durable nylon bushings, this assembly ensures optimal alignment and support for your vehicle's braking system. Its design includes a camshaft bracket angle of 65° CW, which aids in precise brake application. Measuring 13.25 inches in length, it is specifically crafted to accommodate various truck models, simplifying installation and maintenance processes. Utilizing quality materials guarantees a longer lifespan and enhanced durability, making this bracket assembly an essential choice for fleet managers. When it comes to maintaining your vehicle’s braking system, using genuine Bendix parts is vital. Source One Parts Center is your trusted source for authentic Bendix bracket assemblies and other commercial vehicle components, ensuring you receive the best in quality and performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.25
Height
292.0 mm (11.5 in)
Length
337.0 mm (13.27 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.49 lb
