814759N

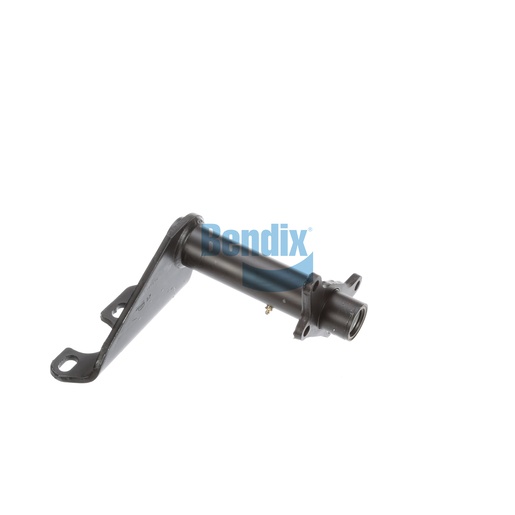

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is expertly designed to support air chambers and camshafts, ensuring the smooth operation of your vehicle's braking system. This assembly is built with high-strength materials and features nylon bushings that enhance durability and reduce wear over time. With a precise camshaft bracket angle and slack length adjustment, it allows for optimal alignment, which is crucial for effective braking performance. Designed for easy installation, this bracket minimizes downtime and maintenance efforts, making it an essential component for fleet operators. By investing in this bracket assembly, you'll ensure that your brake system maintains its integrity and performance, providing you with peace of mind on the road. Source One Parts Center is your ideal choice for genuine Bendix OEM parts, providing unmatched quality and reliability for commercial vehicle maintenance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Height
292.0 mm (11.5 in)
Length
342.0 mm (13.46 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
53° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.58 lb
