815651N

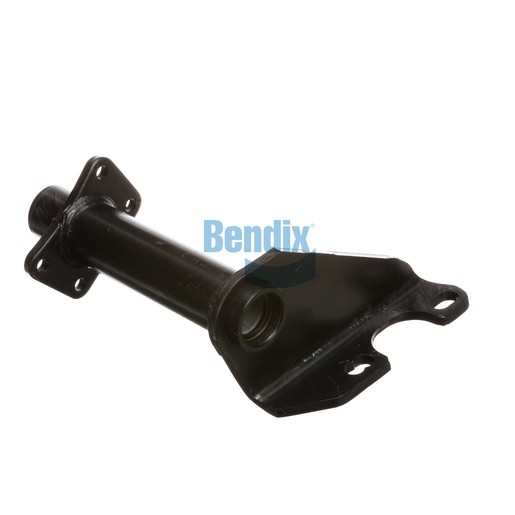

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a crucial support component for Bendix Foundation Drum Brakes, designed with precision for optimal performance and durability. Featuring a full arm style and nylon bushings, this assembly enhances the integrity of your braking system while facilitating easy installation. With a net weight of just under 10 lbs and dimensions that allow it to fit seamlessly into your vehicle, this genuine Bendix OEM part ensures reliable operation in demanding environments. Made in the United States, it reflects the high-quality manufacturing standards expected from Bendix. For all your genuine Bendix OEM parts needs, Source One Parts Center is the premier destination, guaranteeing you receive the best components for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
9.99 lb
