815729

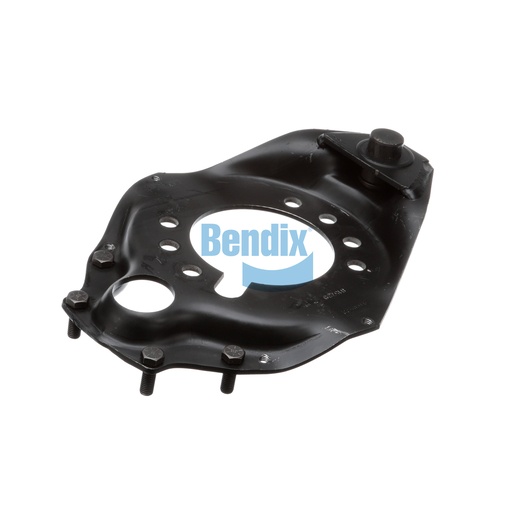

Spider / Pin Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spider / Pin Assembly is an essential component of your vehicle's drum brake system, designed to provide the necessary support and alignment for optimal brake performance. Constructed with high-quality materials, this assembly ensures durability and reliability, critical for heavy-duty applications. Its precise engineering allows for easy installation and maintenance, minimizing downtime and enhancing the overall efficiency of your braking system. By using this Spider / Pin Assembly, you can ensure consistent brake application and improve the longevity of your braking components. This assembly is designed to accommodate various Bendix configurations, making it a versatile choice for fleet operators. Source One Parts Center is your best source for genuine Bendix OEM parts, guaranteeing that you receive authentic components that meet the highest standards of quality and reliability.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
11.46 lb
