815863

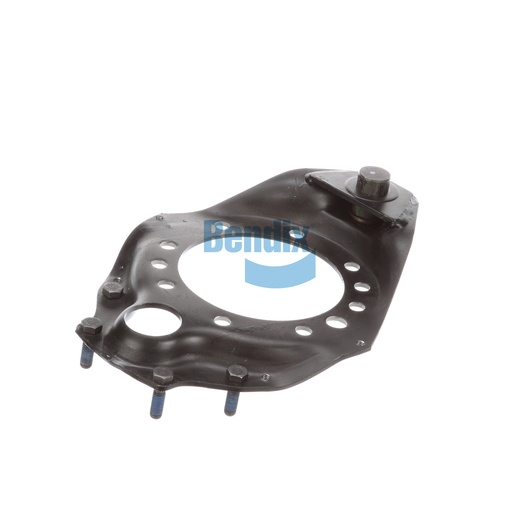

Spider / Pin Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix spider/pin assembly is an essential part of your truck's brake system, providing stability and support to the brake shoes during operation. Designed with precision, this assembly ensures the proper alignment and functionality of the brakes, allowing for consistent and reliable stopping power. Its durable construction withstands the rigors of heavy-duty braking applications, thereby enhancing the overall safety and performance of your vehicle. The assembly is lightweight, weighing in at just 10.8 pounds, making it easy to handle during installation or replacement. With its compatibility with various Bendix braking systems, this assembly contributes to smoother operations and less wear on other brake components. For those in search of high-quality parts, Source One Parts Center stands out as the best choice for genuine Bendix OEM parts that guarantee performance and reliability.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
10.8 lb
