815883N

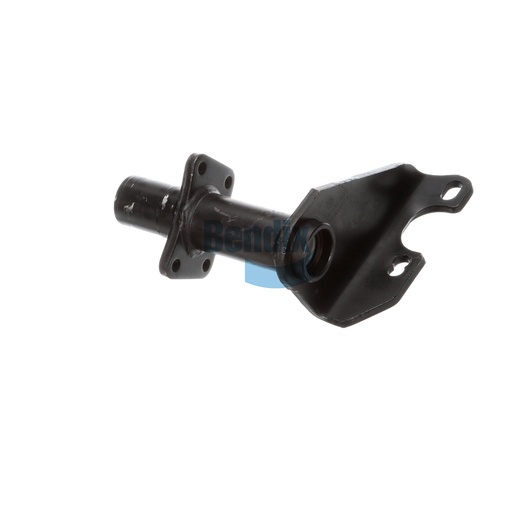

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is expertly designed to provide essential support for various brake components, ensuring optimal performance and alignment within the braking system. Constructed from high-strength materials, this bracket assembly is built to endure the rigors of heavy-duty applications, making it a reliable choice for fleet operators. Its design facilitates easy installation and adjustment, allowing for seamless integration with existing brake systems. This component plays a critical role in maintaining the proper positioning of brake elements, which is vital for achieving maximum braking efficiency. The precision engineering of this bracket assembly ensures that it withstands vibrations and loads, contributing to the longevity of the braking system. When looking for genuine Bendix OEM parts, Source One Parts Center is the best source, providing high-quality components that ensure your commercial vehicles operate safely and efficiently.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Height
292.0 mm (11.5 in)
Length
294.0 mm (11.57 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
50° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.34 lb
