816147N

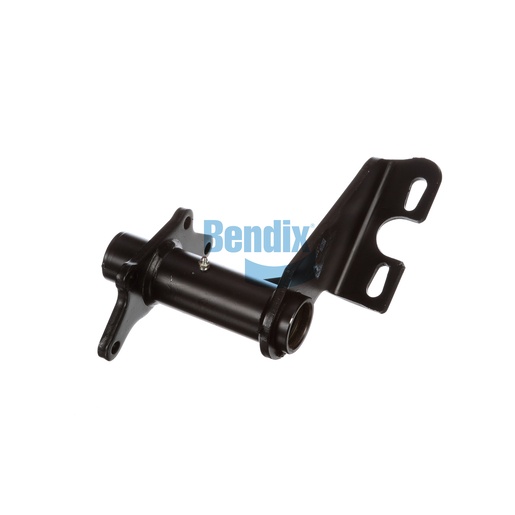

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital component of the foundation drum brake system, designed to provide essential support and alignment for critical braking components. With a single gusset and scalloped arm style, this assembly is engineered for durability, ensuring long-lasting performance in heavy-duty applications. Weighing 5.1 kg, it is easy to install and fits seamlessly into existing systems, enhancing the overall performance of your vehicle's braking system. Its robust construction ensures that it maintains optimal alignment and function, contributing to effective braking and vehicle safety. For those in search of genuine Bendix OEM parts, Source One Parts Center is the best place to purchase, ensuring you receive high-quality components that meet stringent performance standards.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.81
Length
275.0 mm (10.83 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
306° CW
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.3 lb
