$579.95
$695.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

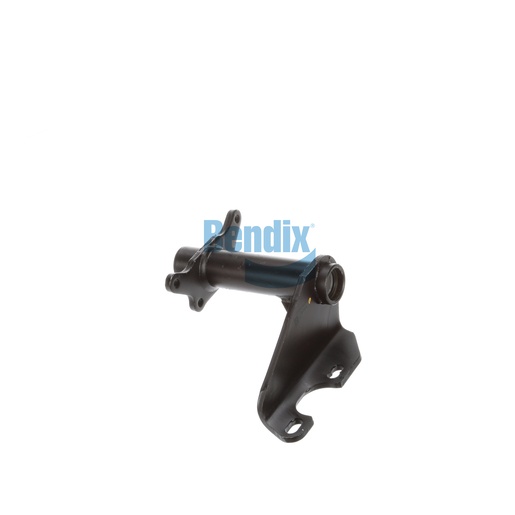

The Bracket Assembly is designed to provide robust support for your truck's brake system, ensuring optimal performance and durability. Constructed from high-quality materials, this assembly is engineered to withstand the harsh conditions of commercial vehicle operation. Its nylon bushings reduce friction and enhance the longevity of your braking components, while the precise dimensions guarantee a perfect fit for your brake assembly. This part is essential for maintaining the alignment and proper function of your truck’s braking system, contributing to overall safety on the road. When you select this Bracket Assembly, you're making a smart choice for your vehicle's maintenance. Source One Parts Center is your go-to source for genuine Bendix parts, ensuring you receive the best quality for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.00
Height
292.0 mm (11.5 in)
Length
330.0 mm (12.99 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.7 lb
