816212

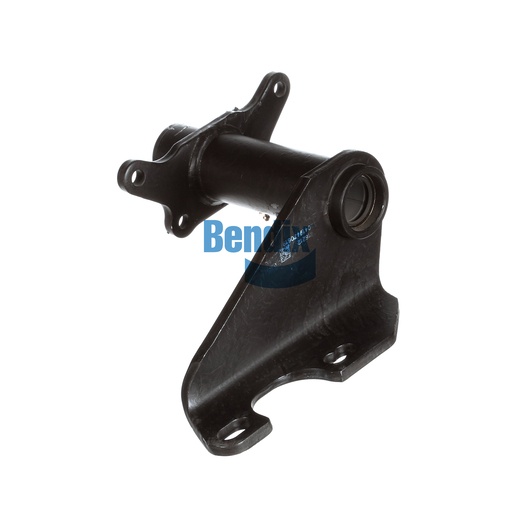

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is engineered to provide robust support for various brake components in commercial vehicles. Its heavy-duty construction is designed to withstand the demanding conditions of the road, ensuring that your brake system remains stable and reliable. Featuring a unique gusset design and nylon bushings, this bracket assembly excels in dampening vibrations and providing secure attachment points for brake parts. The precise engineering of this assembly allows for easy installation, which is crucial for minimizing downtime during repairs. Its compatibility with a range of Bendix drum brake systems makes it a versatile choice for fleet operators. Opting for genuine Bendix OEM parts from Source One Parts Center guarantees you receive high-quality components that meet rigorous safety and performance standards, providing peace of mind on every journey.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.22
Length
285.0 mm (11.22 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.87 lb
