816213
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

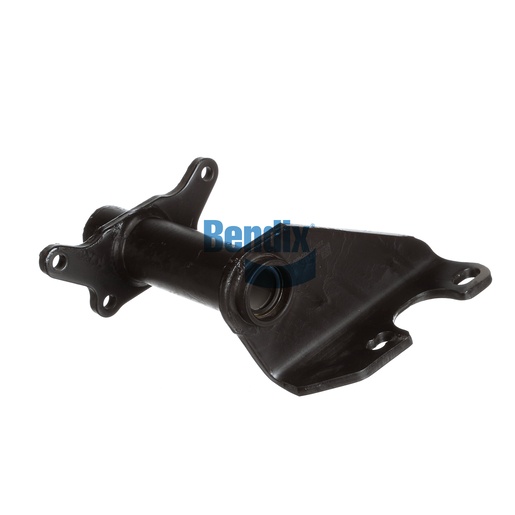

The Bendix Bracket Assembly is a robust and essential component designed for foundation drum brakes in commercial vehicles. Its full arm style and single gusset design provide enhanced strength and stability, ensuring reliable performance under heavy loads and extreme conditions. Constructed with high-quality materials, this bracket assembly features nylon bushings which help reduce wear and improve the longevity of the component. With its precise dimensions, it guarantees a perfect fit for easy installation, making it an ideal choice for maintenance and repairs. This assembly plays a critical role in ensuring that the braking system operates effectively, contributing to overall vehicle safety. To ensure your vehicle remains in peak condition, utilizing genuine Bendix OEM parts is crucial. Source One Parts Center is your best source for acquiring these high-quality components, ensuring you receive the reliability and performance your vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.22
Length
285.0 mm (11.22 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.69 lb
