816235N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

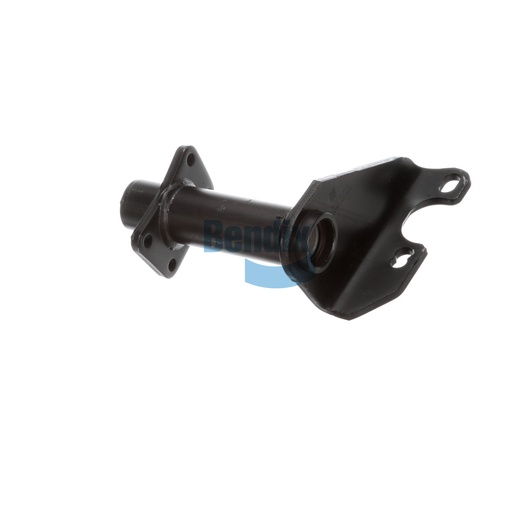

The Bracket Assembly by Bendix is a critical component for foundation drum brakes, designed to provide robust support and stability for brake systems. Constructed with a full arm style and nylon bushings, this bracket enhances durability and reduces wear during operation. Measuring 5.50 to 6.00 inches in slack length, it aligns perfectly with existing components for optimal functionality. The bracket assembly not only supports the air chamber but also contributes to the overall strength of the braking system, ensuring reliable performance. Weighing 5.6 kg, it is engineered for heavy-duty applications, making it a perfect choice for commercial vehicles. Source One Parts Center is your best place to purchase genuine Bendix OEM parts, ensuring quality and dependability for your fleet.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.22
Length
285.0 mm (11.22 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
75° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.4 lb
