816937N

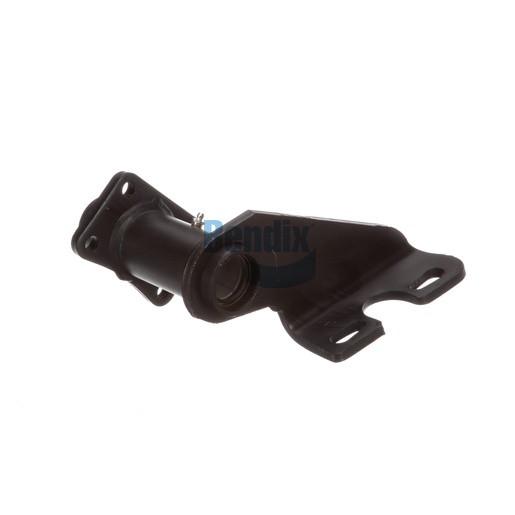

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is engineered to provide essential support for the camshaft in your Bendix drum brake system, ensuring that the braking components function effectively and reliably. This assembly features a robust design with nylon bushings that enhance durability and reduce wear over time. With dimensions optimized for performance, including a length of 5.50 inches to 6.00 inches in slack length, it ensures precise alignment and stability during braking operations. This means improved braking efficiency and increased safety for your commercial vehicle. The assembly is easy to install, making it an excellent choice for fleet maintenance and repairs. Trust in the quality and reliability of genuine Bendix parts to keep your braking system operating at its best. Source One Parts Center is the ideal destination for all your Bendix OEM parts, offering superior customer service and competitive prices.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length
237.0 mm (9.33 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
323° CW
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.31
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
10.16 lb
