817140N

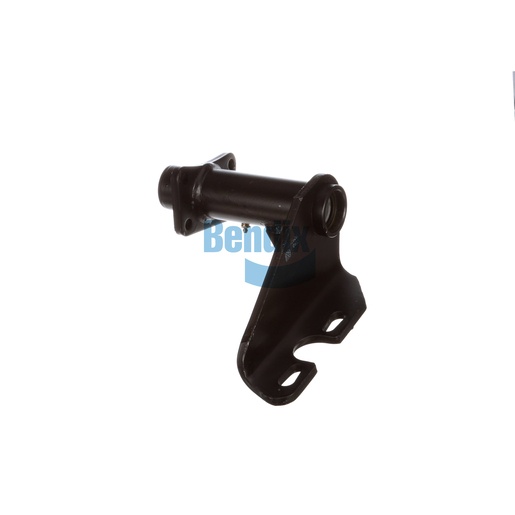

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is a vital component in foundation drum brake systems, designed for strength and durability under heavy loads. Featuring a full arm style and constructed with nylon bushings, this bracket ensures a secure fit and reliable performance. With a length of 11.22 inches and a camshaft bracket angle of 69° CCW, it is engineered for precision alignment in brake applications. This assembly not only provides essential support for brake components but also contributes to the overall efficiency of the braking system, enhancing the longevity of your vehicle. As a trusted supplier of genuine Bendix parts, Source One Parts Center is your go-to source for high-quality truck components that meet the demands of commercial operations.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.22
Length
285.0 mm (11.22 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Camshaft Bracket Angle
69° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
11.99 lb
