817143N

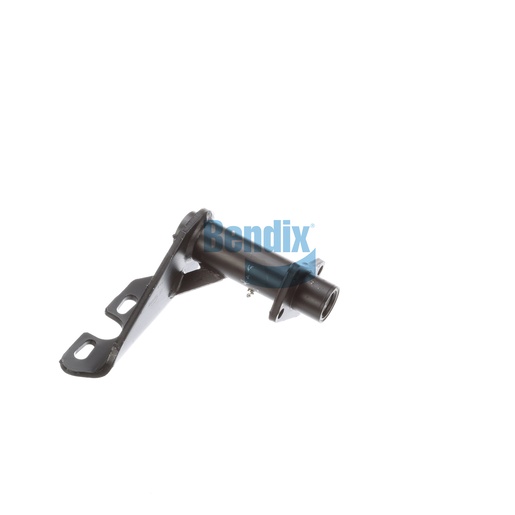

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a critical component designed for use in foundation drum brakes, providing the necessary support for camshaft and air chamber installations. With a robust construction featuring nylon bushings and a unique gusset design, this bracket ensures optimal stability and alignment during brake operation, contributing to improved braking performance and safety. Its dimensions, specifically the length and angle specifications, are engineered to accommodate various installation requirements, making it a versatile choice for fleet maintenance and repair. The assembly's weight and structural integrity allow for reliable performance under heavy loads, making it suitable for a range of commercial vehicles. By choosing genuine Bendix OEM parts, you can trust that you are investing in quality and reliability. Source One Parts Center is your best destination for authentic Bendix OEM parts, ensuring you receive components that meet the highest industry standards.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.22
Length
285.0 mm (11.22 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.2 lb
