817229N

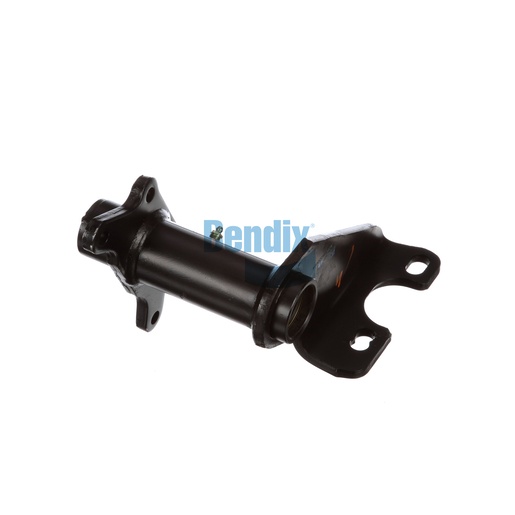

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This Bracket Assembly is designed to provide exceptional support for Bendix foundation drum brakes. With a scalloped arm style and high-strength nylon bushings, it ensures maximum stability and durability, crucial for maintaining braking performance under heavy loads. This assembly supports key brake components, helping to prevent wear and ensuring consistent operation over time. By using this high-quality bracket, you enhance the safety and reliability of your vehicle's braking system. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring that you receive products that meet the highest industry standards.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Length
268.0 mm (10.55 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
333° CW
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.58 lb
