817758N

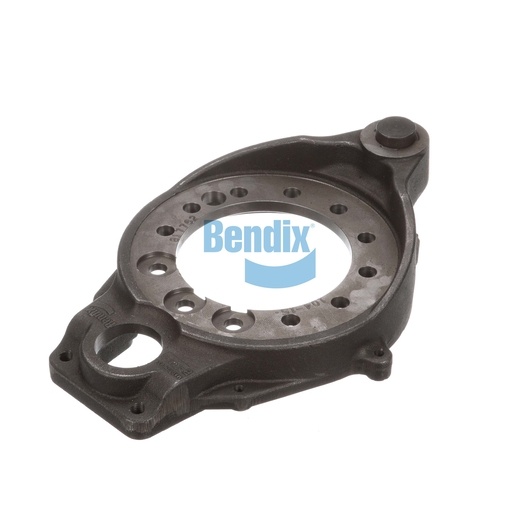

Spider / Pin Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spider / Pin Assembly is a crucial aspect of the Bendix foundation drum brake system, designed to ensure that the braking mechanism functions optimally. Crafted from durable materials, this assembly is built to withstand the heavy demands of commercial vehicle operations, ensuring reliability and long-lasting performance. Weighing 20.83 lbs, it is designed for robust support while maintaining ease of installation. This assembly plays a key role in facilitating effective braking engagement, significantly impacting the safety and control of the vehicle. Its precise engineering ensures compatibility with other Bendix components, providing seamless integration within the braking system. For fleet managers and truck owners who require dependable braking solutions, this Spider / Pin Assembly is a smart choice. Source One Parts Center is your top choice for authentic Bendix OEM parts, providing you with the quality components that meet your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
20.83 lb
