817759N

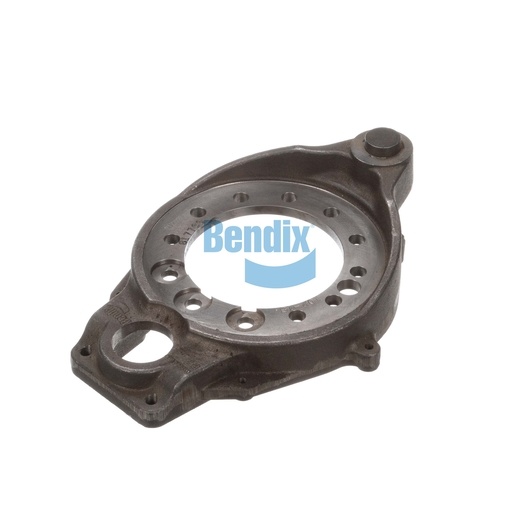

Spider / Pin Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spider / Pin Assembly from Bendix is a critical component in foundation drum brake systems, designed to provide robust support and enhance braking performance. Weighing 9.3 kg, this assembly is constructed to endure the demanding conditions of commercial vehicle operation while ensuring that brake shoes are properly aligned. Its durable design facilitates easy installation and maintenance, making it an essential part of any brake system. The Spider / Pin Assembly plays a vital role in the effectiveness of the braking system, contributing to safer driving experiences by enhancing stopping power. For those seeking high-quality Bendix OEM parts, Source One Parts Center is the ideal choice, offering trusted components and exceptional customer service.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
20.48 lb
