817894

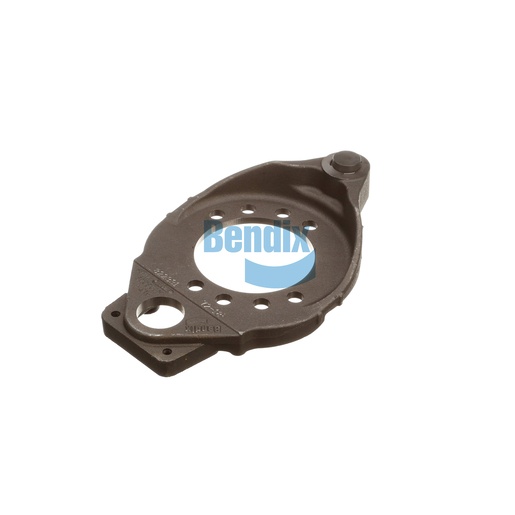

Spider / Pin Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spider / Pin Assembly is a vital component in the drum brake system, ensuring the effective alignment and operation of brake shoes. Its robust design is engineered to withstand the rigorous demands of commercial vehicle applications while providing optimal support for consistent braking performance. Weighing 7.9 kg, this assembly is built for durability and reliability, making it suitable for both front and rear brake configurations. The assembly's thoughtful engineering allows for easy installation and ensures that your braking system performs at its best. By choosing genuine Bendix parts like the Spider / Pin Assembly, you are investing in quality and safety for your commercial vehicle. Source One Parts Center is the best place to purchase authentic Bendix OEM parts, ensuring you receive the highest standards in automotive components.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
17.46 lb
