$539.95
$647.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

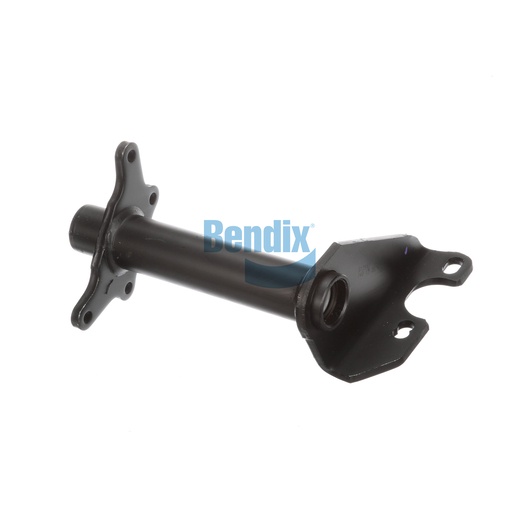

The Bendix Bracket Assembly is an essential component for ensuring the proper functioning of your vehicle’s drum brake system. Engineered for durability, this assembly features a robust design with nylon bushings to reduce friction and wear, contributing to the overall efficiency of the braking system. With a length that accommodates various applications, it is suitable for heavy-duty use. The assembly's lightweight construction allows for easy installation, making it a practical choice for fleet maintenance. Its compatibility with multiple camshaft configurations ensures a versatile fit for different vehicles. By purchasing from Source One Parts Center, you can be confident that you're selecting genuine Bendix OEM parts that meet the highest standards of quality and performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.81
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
376.0 mm (14.8 in)
Gusset Angle
40°
Camshaft Bracket Angle
42° CW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14 lb
