817918N

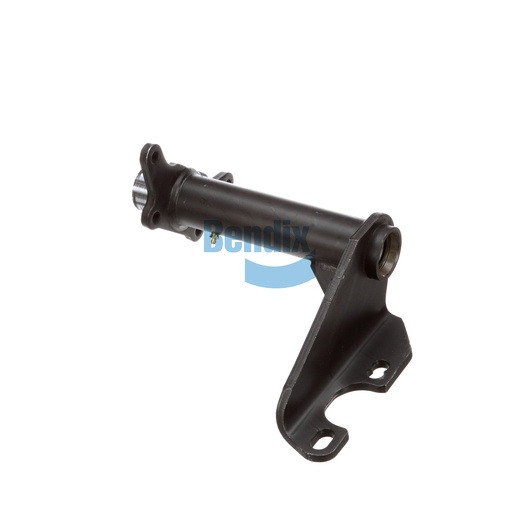

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is engineered for optimal performance in foundation drum brake systems, providing essential support and stability to various braking components. This bracket features a robust design that ensures durability and longevity under the demanding conditions of heavy-duty applications. With a gusset angle of 40 degrees and nylon bushings, it minimizes friction and wear, promoting efficient operation. The assembly is designed for easy installation and maintenance, making it a practical choice for fleet operators. Its compatibility with various camshaft configurations enhances its versatility, making it a reliable component for any braking system. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring you receive the highest quality components for your vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.81
Gusset Angle
40°
Camshaft Bracket Angle
48° CCW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.65 lb
