818423

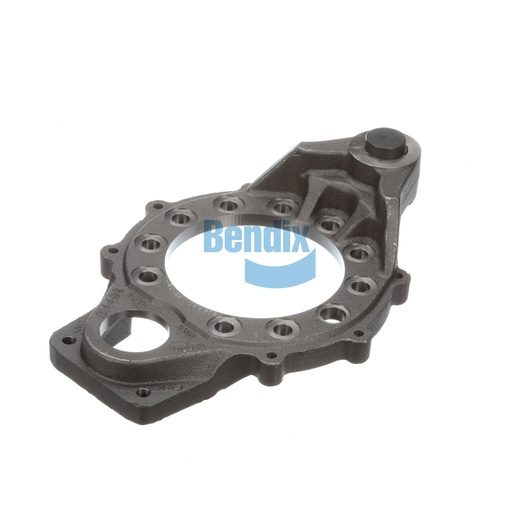

Spider / Pin Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spider / Pin Assembly is a crucial component for the foundation drum brake system in commercial vehicles, ensuring the effective alignment and function of brake shoes. This assembly is designed to provide optimal support and stability, enhancing overall braking performance. With a weight of 6.8 kg, this durable part is engineered to withstand the demanding conditions faced by heavy-duty trucks. It is compatible with both front and rear brake applications, making it a versatile choice for various vehicle configurations. By choosing genuine Bendix parts like the Spider / Pin Assembly, you ensure that your braking system operates efficiently and reliably. For high-quality Bendix parts, Source One Parts Center is your best option, providing authentic OEM products for all your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
15.01 lb
