818526N

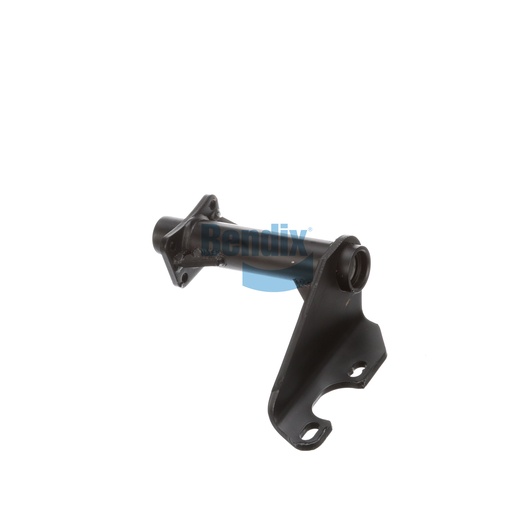

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital component in the foundation drum brakes, designed to provide robust support for air chambers and camshafts. Constructed from high-grade materials, this assembly ensures durability and reliability, essential for heavy-duty applications. The triple gusset design enhances structural integrity while allowing for precise alignment and adjustment during installation. Equipped with nylon bushings, it minimizes friction and wear, promoting the longevity of the braking system. This bracket assembly is engineered for seamless integration with various brake systems, ensuring optimal performance. For those seeking high-quality and durable truck parts, Source One Parts Center is the best place to find genuine Bendix OEM components, ensuring your vehicle operates safely and efficiently.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Height
292.0 mm (11.5 in)
Length
363.0 mm (14.29 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Triple
Country of Origin
United States
Weight
14 lb
