$589.95
$707.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

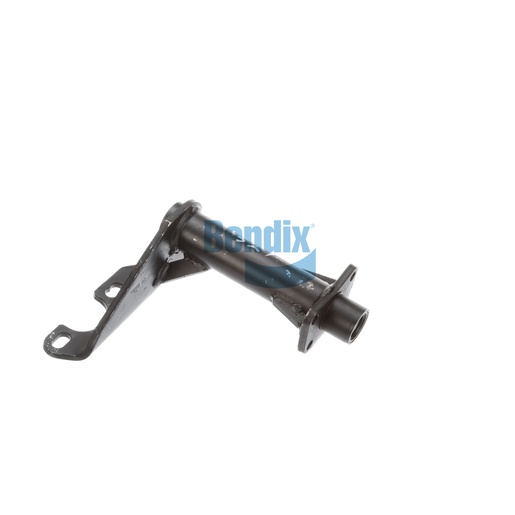

The Bracket Assembly is a pivotal part of the foundation drum brake system, designed to provide strong support and proper alignment for various brake components. Constructed with durability in mind, this assembly is built to withstand the rigors of commercial vehicle operation, ensuring that your braking systems function effectively under high-stress conditions. Its triple gusset design and nylon bushings enhance stability and performance, making it a reliable choice for maintaining brake functionality. With precise dimensions for easy installation, this bracket assembly simplifies the process of upgrading or replacing brake components, reducing vehicle downtime. The Bracket Assembly not only improves the integrity of the braking system but also contributes to the overall safety of the vehicle. Source One Parts Center is your go-to destination for authentic Bendix OEM parts, guaranteeing quality and reliability that professionals trust.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Height
292.0 mm (11.5 in)
Length
363.0 mm (14.29 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Triple
Country of Origin
United States
Weight
11.99 lb
