818874

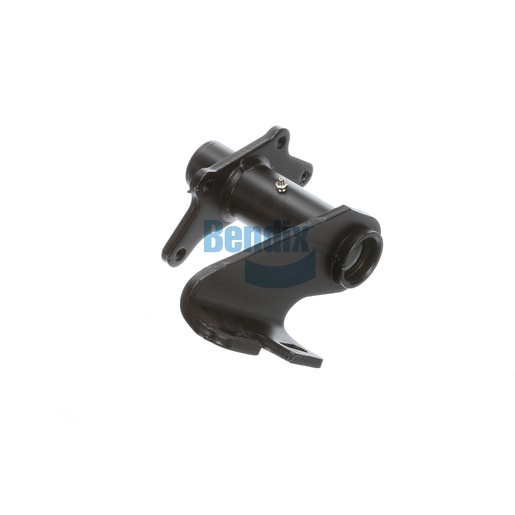

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is an essential component that supports the foundation drum brake system, ensuring reliable performance under heavy loads. Constructed in the USA, this robust bracket assembly weighs 5.2 kg (11.49 lb) and features a durable design that withstands the rigors of commercial usage. It plays a critical role in securing brake components, providing stability and enhancing the overall efficiency of the braking system. The precise engineering of this bracket assembly ensures that your vehicle maintains optimal braking performance, crucial for safety on the road. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring you receive quality and performance with every order.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Length
268.0 mm (10.55 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
310° CCW
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.49 lb
