818974N

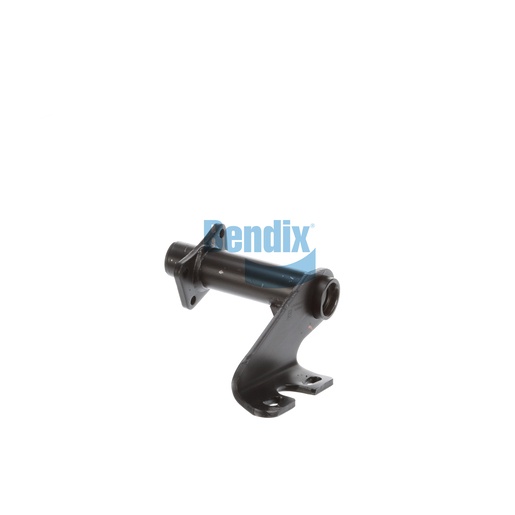

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential part of the foundation drum brake system, designed for maximum strength and durability. Weighing 5.4 kg, this assembly is manufactured in the United States and features a scalloped arm style with nylon bushings, providing superior support for air chambers and camshafts. Its precise engineering ensures a seamless fit and optimal functionality, helping to enhance the overall braking performance of your commercial vehicles. Ideal for fleet maintenance, this bracket assembly contributes to improved safety and reduced maintenance costs. Source One Parts Center is the best place to find genuine Bendix OEM parts, delivering quality and reliability for your truck's needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
115° CCW
Length (Centerline to Centerline) [IN]
12.50
Height
292.0 mm (11.5 in)
Length
318.0 mm (12.52 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.8 lb
