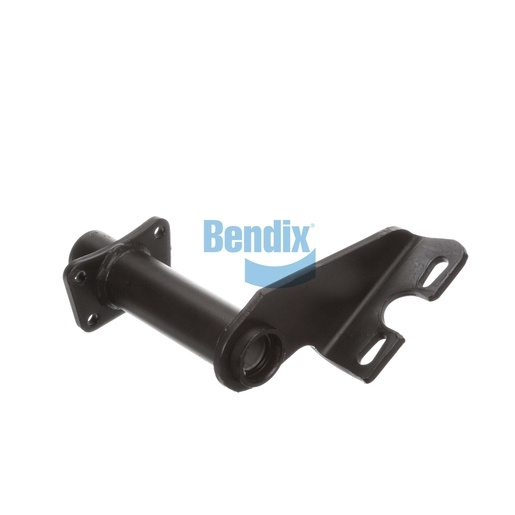

818975N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential component for your foundation drum brakes, providing the necessary structural support for optimal braking performance. This assembly is crafted from high-quality materials, ensuring durability and resistance to wear during rigorous use. Designed for easy installation, it integrates seamlessly into your braking system, enhancing reliability and safety on the road. The unique design features advanced engineering that allows for superior alignment and operation, making it a critical part of your vehicle's braking system. Trust Source One Parts Center for your Bendix OEM parts, where you can find the best in quality and customer service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
115° CW
Length (Centerline to Centerline) [IN]
12.50
Height
292.0 mm (11.5 in)
Length
318.0 mm (12.52 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.65 lb
