818983N

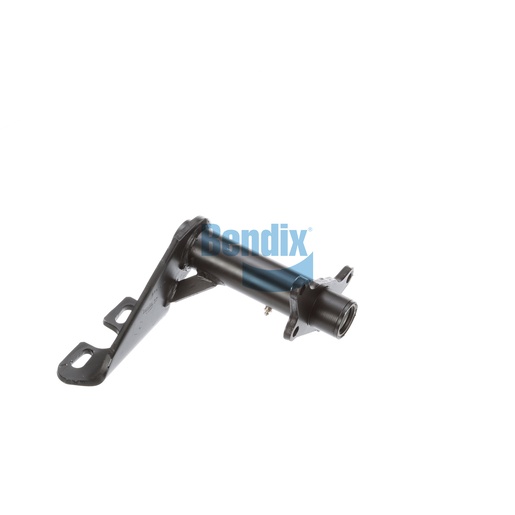

Bracket Assembly
Bendix
AVAILABLE
2 are currently available
Ships within 11-13 business days
$419.95
$503.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is engineered for outstanding performance and reliability in foundation drum brakes. This assembly features a durable design with nylon bushings that ensure long-lasting operation under heavy loads. Its precise engineering guarantees proper alignment, enhancing the efficiency of your braking system. Ideal for commercial applications, this bracket is easy to install, reducing downtime. For authentic Bendix OEM parts, trust Source One Parts Center as your leading supplier, providing the highest quality components for your truck.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.50
Height
292.0 mm (11.5 in)
Length
318.0 mm (12.52 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Camshaft Bracket Angle
58° CW
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
12.33 lb
