$479.95
$575.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

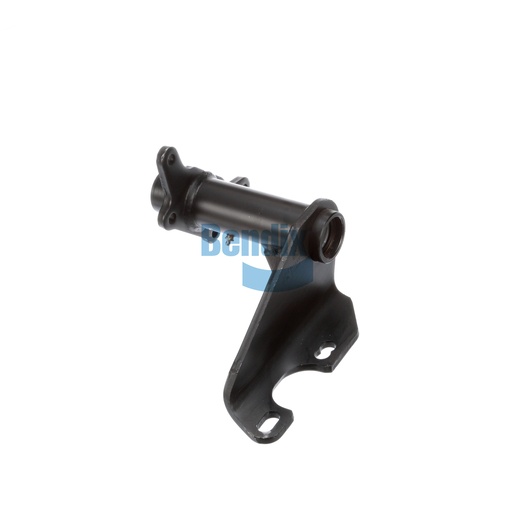

The Bendix Bracket Assembly is a crucial component for your foundation drum brakes, engineered for optimal strength and performance. This assembly provides the necessary support for various brake components, ensuring stability and reliability during operation. Weighing 5.7 kg, it is constructed from high-quality materials that withstand the demands of commercial use, providing long-lasting durability. Manufactured in the United States, this bracket assembly meets strict quality standards, ensuring safety and effectiveness in your braking system. A properly installed bracket is essential for the overall functionality of your brakes, contributing to the safety and performance of your vehicle. For sourcing genuine Bendix OEM parts, Source One Parts Center is your best option, offering quality and reliability for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Camshaft Bracket Angle
45° CCW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.52 lb
