$379.95
$455.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

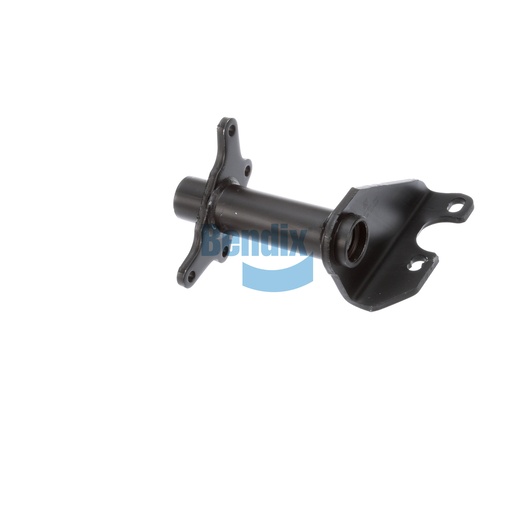

The Bendix Bracket Assembly is a crucial component designed to uphold the performance and reliability of your truck’s foundation drum brakes. Proudly made in the USA, this assembly features a single gusset and full arm style, engineered for strength and durability. With an adjustable slack length between 5.50 to 6.00 inches and a camshaft bracket angle of 45° CW, it provides precise alignment essential for effective braking. Weighing approximately 12.83 pounds, this assembly is robust yet designed to be manageable for installation. The use of nylon bushings enhances its longevity, making it an excellent choice for heavy-duty applications. Ideal for those looking to maintain or enhance their braking systems, this bracket assembly ensures optimal performance and safety on the road. When you need genuine Bendix OEM parts, Source One Parts Center is the best place to ensure you receive high-quality components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Camshaft Bracket Angle
45° CW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.83 lb
