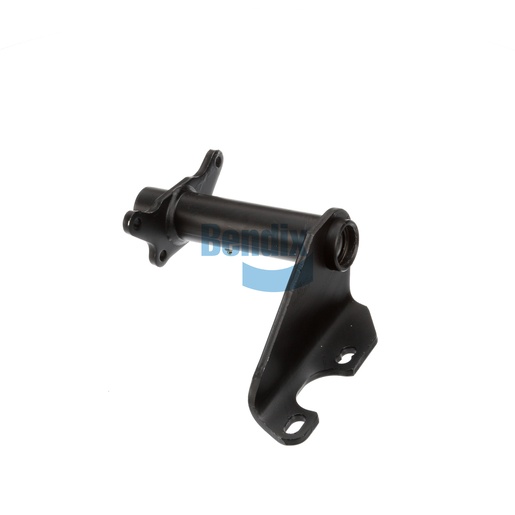

819506N
Bracket Assembly
Bendix
AVAILABLE
3 are currently available
Ships within 11-13 business days
$379.95
$455.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential part of your foundation drum brakes, designed to provide stability and support for the braking system. This assembly is crafted with precision, ensuring a secure fit and optimal performance under demanding conditions. Weighing 6.1 kg, it is constructed from durable materials that withstand the rigors of commercial use, providing long-lasting performance. Made in the United States, this bracket meets strict quality standards, ensuring safety and reliability for your fleet. A properly installed bracket is crucial for effective braking, contributing to the overall efficiency of your vehicle's braking system. For superior quality and genuine Bendix OEM parts, Source One Parts Center is your trusted source, delivering the best for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
84° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.49 lb
