819507N

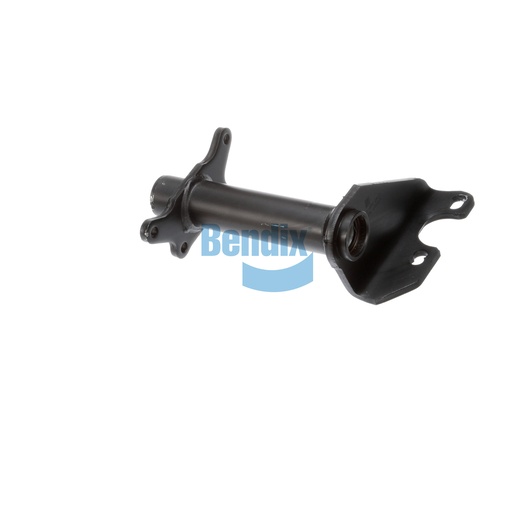

Bracket Assembly
Bendix
AVAILABLE
3 are currently available
Ships within 11-13 business days
$369.95
$443.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential component for foundation drum brakes, designed with durability and performance in mind. This robust assembly, weighing 9.5 kg, is manufactured in the United States and crafted from high-quality materials to ensure long-lasting use in heavy-duty applications. It features a full arm style with nylon bushings, providing superior support for air chambers and camshafts. The bracket's precise design allows for easy installation and alignment, ensuring optimal performance of your braking system. Ideal for fleet maintenance, this bracket assembly helps to enhance the overall safety and efficiency of your commercial vehicles. For genuine Bendix OEM parts that you can trust, look no further than Source One Parts Center, your best source for high-quality truck components.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
84° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
20.99 lb
