819532N

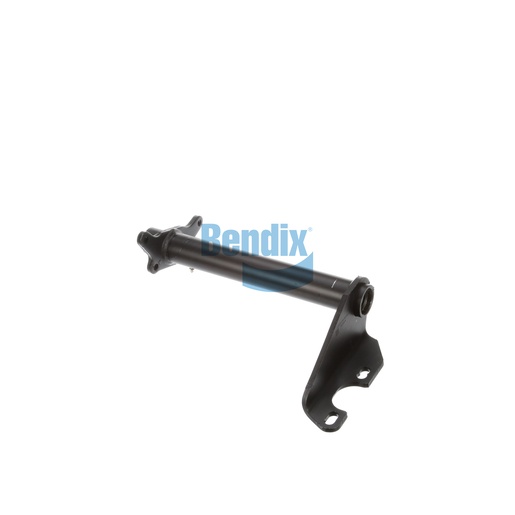

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital part of the foundation drum brakes, designed to provide steadfast support for air chambers and camshafts. With an impressive weight of 17.2 pounds and measuring 21.06 inches in length, this bracket assembly features a full arm style that enhances its structural integrity. The use of nylon bushings ensures reduced wear, promoting a longer lifespan for your braking system. This assembly is carefully engineered for precise fit and alignment, ensuring optimal braking performance. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center stands out as the best option, providing high-quality components for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
21.06
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Length
535.0 mm (21.06 in)
Camshaft Bracket Angle
70° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
17.2 lb
