819533N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

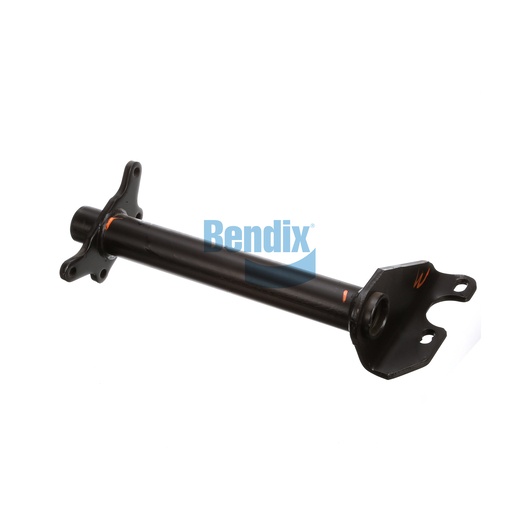

The Bracket Assembly from Bendix is an essential component for your foundation drum brakes, providing robust support for the air chamber and camshaft. This assembly is designed with full arm style and durable nylon bushings to ensure long-lasting performance under heavy-duty conditions. With a net weight of 18.11 lbs, it is engineered to be both sturdy and reliable. The precise dimensions and easy installation process make it a practical choice for fleet maintenance, allowing for quick replacements that minimize downtime. For top-quality genuine Bendix OEM parts, Source One Parts Center is your go-to source, ensuring you receive quality products and exceptional service for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
21.06
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Length
535.0 mm (21.06 in)
Camshaft Bracket Angle
70° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
18.11 lb
