This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

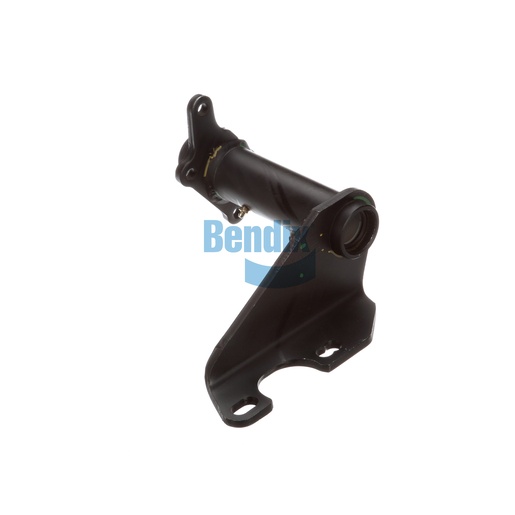

The Bracket Assembly from Bendix is an essential part of your truck's foundation drum brake system, providing the structural support necessary for reliable braking performance. Designed and manufactured in the United States, this assembly is built to endure the rigors of heavy-duty applications, weighing 6.1 kg. Its robust construction ensures durability, while the inclusion of nylon bushings enhances longevity and wear resistance. This bracket assembly is designed for easy installation, making it a practical choice for drivers and fleet managers looking to maintain their vehicles efficiently. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring your vehicle's braking system is equipped with the highest quality components.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.25
Height
292.0 mm (11.5 in)
Length
311.0 mm (12.24 in)
Width
365.0 mm (14.37 in)
Camshaft Bracket Angle
38° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.5 lb
