$579.95
$695.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

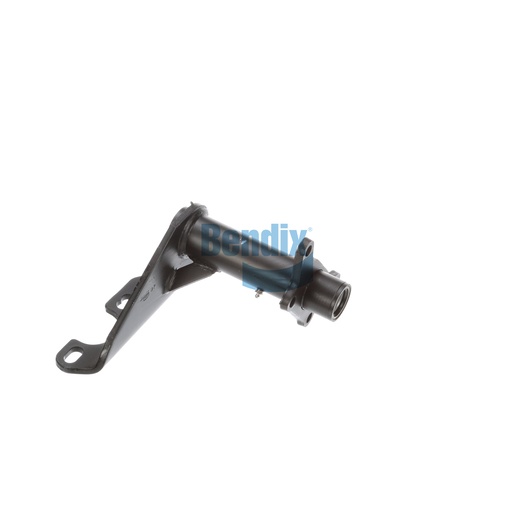

The Bendix Bracket Assembly is a crucial component designed for foundation drum brakes, providing essential support and stability for effective braking systems. Weighing 13.01 lbs, this assembly is engineered with durability in mind, ensuring it can withstand the demands of heavy-duty applications. Its design features nylon bushings and a robust arm style, enhancing the overall performance and longevity of your braking components. This bracket assembly is vital for maintaining proper alignment and functionality of the braking system, contributing to vehicle safety on the road. Choose this assembly to ensure the integrity of your vehicle's braking system. Source One Parts Center is your best bet for genuine Bendix OEM parts, ensuring top-tier quality and performance for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.25
Height
292.0 mm (11.5 in)
Length
311.0 mm (12.24 in)
Width
365.0 mm (14.37 in)
Camshaft Bracket Angle
38° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.01 lb
