819586N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

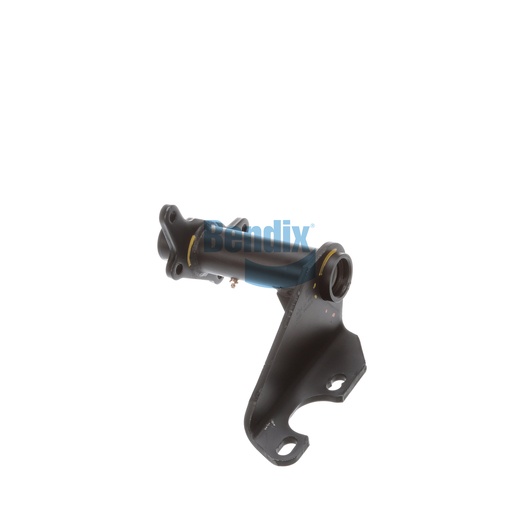

Enhance the reliability and performance of your braking system with the Bendix bracket assembly, expertly designed for foundation drum brakes. This high-quality assembly weighs 5.9 kg (13.05 lb) and is engineered to withstand the rigors of heavy-duty applications, providing essential support for air chambers and camshafts. With its robust construction and precision dimensions, this bracket ensures a perfect fit for your vehicle, promoting optimal performance and safety. Its durable bushings and full arm style contribute to its longevity, making it a vital component for maintaining the efficiency of your braking system. Trust Source One Parts Center for genuine Bendix OEM parts that deliver quality and reliability for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.25
Height
292.0 mm (11.5 in)
Length
311.0 mm (12.24 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
52° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.05 lb
