819587N

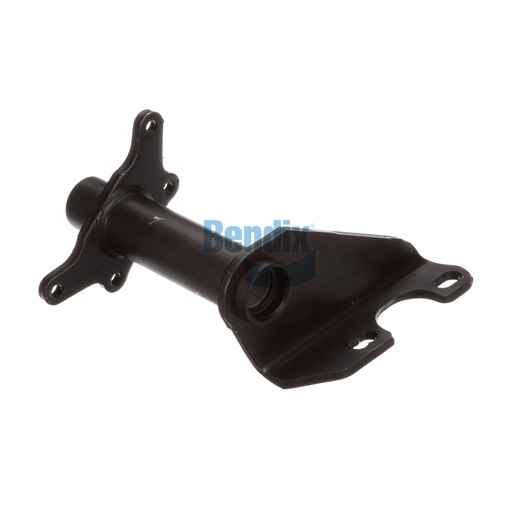

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a critical component in the foundation drum brake system, designed for durability and reliability in commercial vehicles. Weighing 6.0 kg, this bracket assembly supports essential functions within the braking system, ensuring optimal performance and safety. Its innovative design features nylon bushings that minimize wear and enhance longevity. Built to withstand the rigors of heavy-duty applications, this assembly is crucial for maintaining consistent brake performance. By investing in this high-quality bracket assembly, you enhance your vehicle's overall safety and reliability. Source One Parts Center is the ideal place to purchase genuine Bendix OEM parts, providing quality components that adhere to the highest industry standards.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.25
Height
292.0 mm (11.5 in)
Length
311.0 mm (12.24 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
52° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.3 lb
