$389.95
$467.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

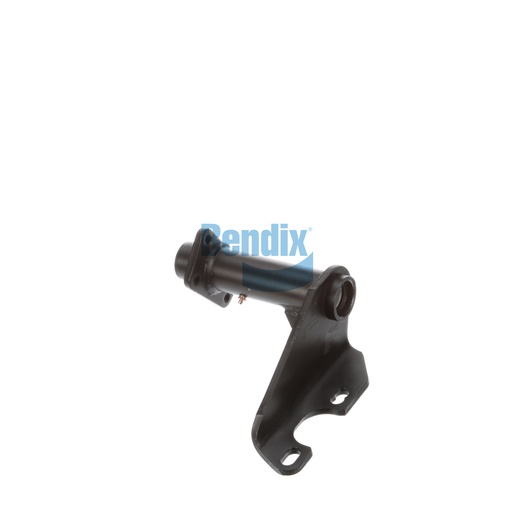

The Bendix Bracket Assembly is a vital component for maintaining the structural integrity of your vehicle's braking system. With a robust design weighing 5.7 kg, this assembly ensures support for air chambers and camshafts in commercial applications. Featuring nylon bushings, it reduces friction and enhances the longevity of your braking components. This assembly is engineered to withstand demanding conditions, making it a reliable choice for fleet managers aiming to enhance vehicle performance. Choose Source One Parts Center for your Bendix OEM parts, where you can expect quality and reliability with every purchase.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.25
Height
292.0 mm (11.5 in)
Length
311.0 mm (12.24 in)
Width
365.0 mm (14.37 in)
Camshaft Bracket Angle
38° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.6 lb
