819591N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

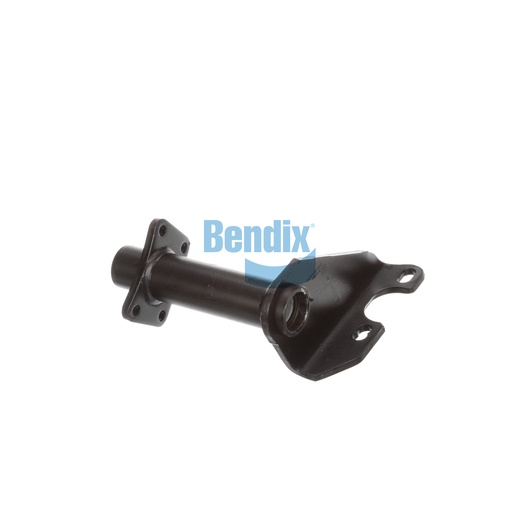

The Bendix Bracket Assembly is an essential component for foundation drum brakes, designed to provide robust support for air chambers and camshafts. With a net weight of 13.0 pounds and a length of 12.24 inches, this assembly features a single gusset and full arm style, ensuring durability and stability during operation. Constructed with nylon bushings, it minimizes wear and extends the life of your braking system. This bracket is engineered for precision alignment, contributing to reliable braking performance. For the best quality and selection of genuine Bendix OEM parts, Source One Parts Center is your premier source for reliable components to keep your commercial vehicles running smoothly.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.25
Height
292.0 mm (11.5 in)
Length
311.0 mm (12.24 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
52° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13 lb
