819666N

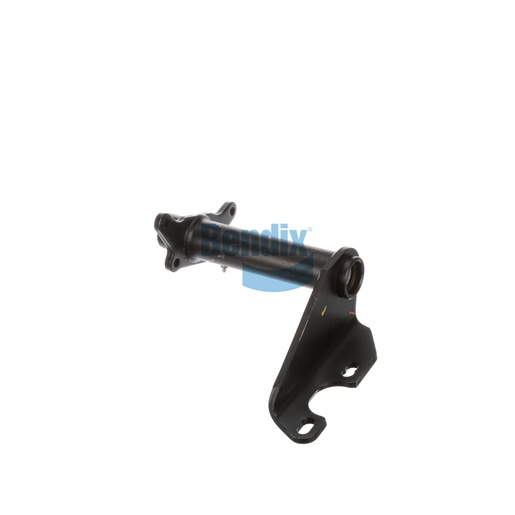

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential component for your foundation drum brakes, designed to provide reliable support for the camshaft and air chamber. With its full arm style and triple gusset design, this assembly ensures maximum strength and stability for effective braking performance. The camshaft bracket angle of 63° CCW allows for precise adjustments, and it accommodates slack lengths between 5.50 inches and 6.00 inches. Constructed with durable nylon bushings, both inboard and outboard, this bracket minimizes wear and enhances longevity. Proudly made in the United States, it meets stringent quality standards to ensure reliable performance under demanding conditions. For top-quality Bendix OEM parts, Source One Parts Center is the ideal source for keeping your vehicle in optimal condition.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.81
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
376.0 mm (14.8 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
63° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.5 lb
